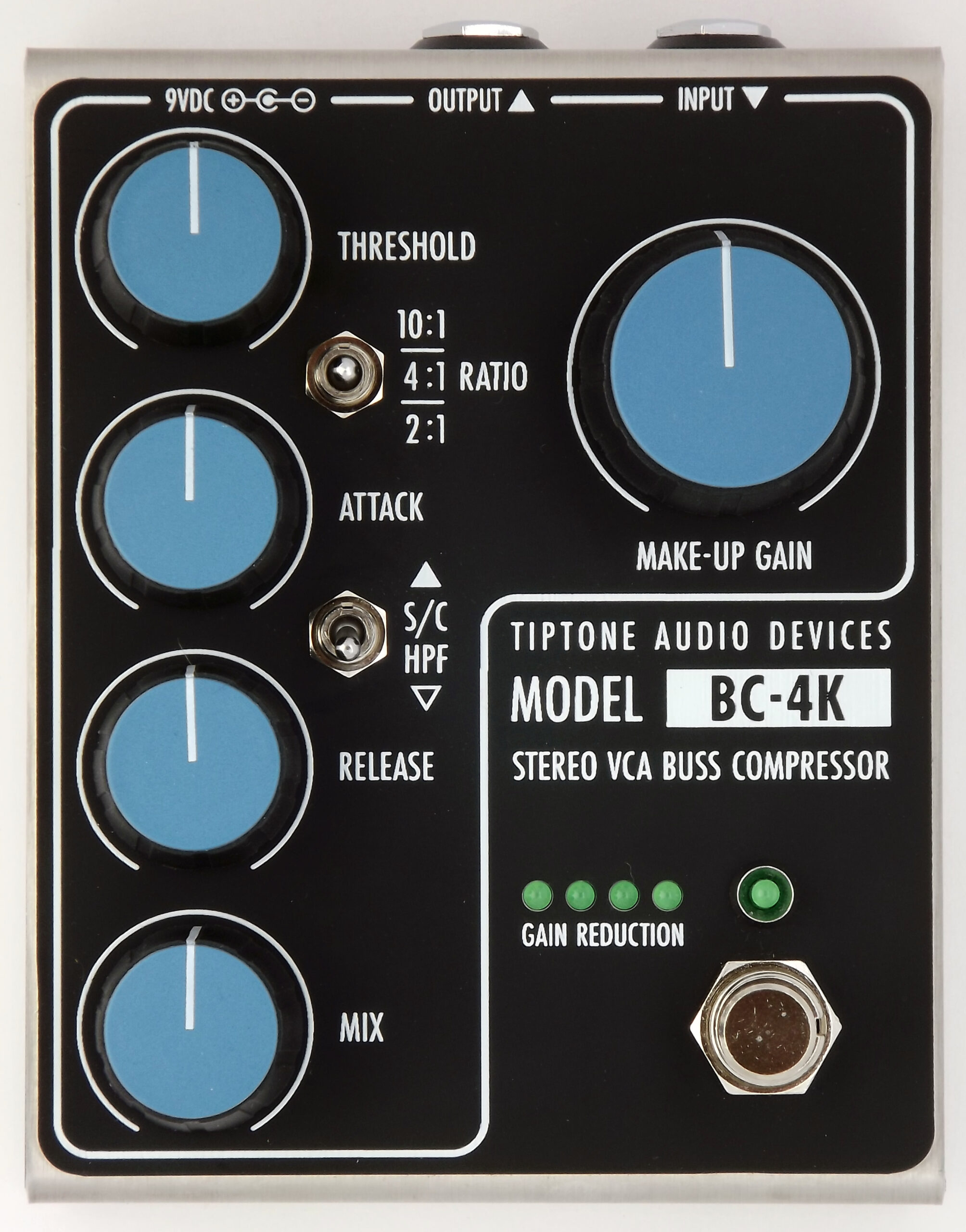

BC-4K: Stereo VCA Buss Compressor

$375.00

Classic studio-quality VCA compression in a friendly format.

Category:

Description

The BC-4K is an exceptionally versatile and robust dynamic range compression unit, meticulously crafted in the spirit of the esteemed console compressors that defined the sonic landscape of the 1980s and beyond.ย  Utilizing a classic voltage controlled amplifier (VCA) design, this compressor delivers precise and musical dynamic control.ย  Whether employed as a line-level device in a studio setting or as an instrument-level processor on a pedalboard, this compressor is equipped with the requisite tools to deliver professional-grade results.

Features

  • Fully analog signal path
  • Studio quality components
  • Custom internal power supply raises voltages to +/-15V, allowing for high headroom suitable for line level signals
  • Wide ranged threshold control allowing for use with instrument or line levels
  • Variable attack and release times
  • Switchable high-pass filter in the sidechain circuit
  • Blend control allowing for parallel compression
  • LED gain reduction meter
  • Relay-controlled true bypass with a soft-touch footswitch
  • Stereo TRS in and out
  • Rugged stainless steel enclosure

Specifications

  • Power Supply: 9VDC center negative
  • Current Draw: 275mA
  • Input Impedance: 1Mฮฉ
  • Output Impedance: <200ฮฉ
  • Frequency Response: 20Hz-20kHz (+/-0.5dB)
  • Compression Ratios: 2:1, 4:1, 10:1
  • Attack Time: 1-50 milliseconds
  • Release Time: 0.1-1.2 seconds
  • Sidechain Filter Frequency: 160Hz
  • Make-Up Gain: -5dB to +25dB

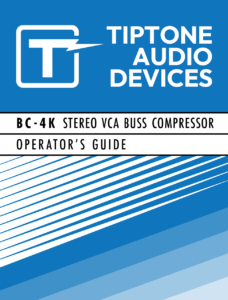

Read the guide
